Central entity responsible for graphical rendering in wPlot2D. More...

#include <wGraphicsEntity.hpp>

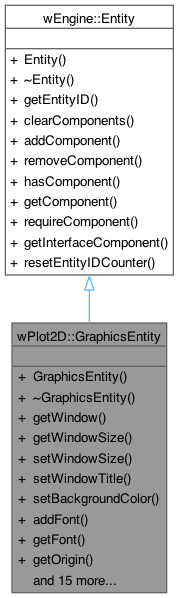

Inheritance diagram for wPlot2D::GraphicsEntity:

Public Member Functions
	GraphicsEntity (const std::string &windowTitle="wPlot2D", const sf::Vector2u &windowSize={ 1600, 1600 }, const sf::Vector2f &originFactor={ 0.5f, 0.5f }, const sf::Vector2f &scaleFactor={ 0.1f, 0.1f })
	Constructs the graphics entity and initializes the rendering window and components.
virtual	~GraphicsEntity ()=default
	Virtual destructor.
sf::RenderWindow &	getWindow ()
	Gives access to the internal SFML window.
sf::Vector2u	getWindowSize () const
	Retrieves the current window size.
void	setWindowSize (const sf::Vector2u &newSize)
	Sets a new window size.
void	setWindowTitle (const std::string &title)
	Updates the window title.
void	setBackgroundColor (const sf::Color &color)
	Clears the window with a background color.
void	addFont (const std::string &name, const std::string &fileName)
	Adds a font to the AssetManager.
sf::Font &	getFont (const std::string name)
	Retrieves a previously loaded font.
sf::Vector2f	getOrigin () const
	Returns the current logical origin (in pixels).
void	setOrigin (sf::Vector2f originFactor)
	Sets a new logical origin (normalized).
sf::Vector2f	getScale () const
	Returns the scale factors (pixels per logical unit).
void	setScale (sf::Vector2f scaleFactor)
	Sets new scale factors (normalized).
sf::Vector2f	getOffset () const
	Returns the current logical offset.
void	setOffset (sf::Vector2f offset)
	Sets the logical offset applied to the axes.
AxisEntity *	addAxis (AxisType type, sf::Vector2f axisRange)
	Adds an axis (X or Y) to the scene.
TitleEntity *	addTitle (const std::string &title, TitleAlignment alignment=TitleAlignment::Bottom)
	Adds a main plot title (top or bottom).
TitleEntity *	addTitle (const std::wstring &title, TitleAlignment alignment=TitleAlignment::Bottom)
	Adds a main plot title (top or bottom).
FunctionEntity *	addFunction (std::function< double(double)> func, double startX, double endX, size_t nbPoints=1000)
	Adds a mathematical function to the scene.
DataPlotEntity *	addDataPlot (const std::vector< sf::Vector2f > &dataPoints)
	Adds a raw data plot (connected points).
LegendEntity *	addLegend (const sf::Vector2f &position, bool hasFrame=true)
	Adds a legend box at a given position.
TitleEntity *	addText (const std::string &text, sf::Vector2f position)
	Adds arbitrary text to the scene.
TitleEntity *	addText (const std::wstring &text, sf::Vector2f position)
	Adds arbitrary text to the scene.
LineEntity *	addLine (const sf::Vector2f &start, const sf::Vector2f &end, bool withArrow=false)
	Adds a line segment to the scene.
void	saveToFile (const std::string &filename)
	Saves a screenshot of the current window.
Public Member Functions inherited from wEngine::Entity
	Entity ()
virtual	~Entity ()
unsigned int	getEntityID () const
	Returns the unique ID associated with this entity.
void	clearComponents ()
	Removes all components currently attached to the entity.
template<typename T, typename... Args>
std::shared_ptr< T >	addComponent (Args &&... args)
	Adds a new component of type T to the entity.
template<typename T>
void	removeComponent ()
	Removes the component of type T from the entity.
template<typename T>
bool	hasComponent () const noexcept
	Checks whether the entity has a component of type T.
template<typename T>
std::shared_ptr< T >	getComponent () const
	Retrieves the component of type T attached to the entity.
template<typename T>
std::shared_ptr< T >	requireComponent (const std::string &context="") const
	Retrieves the component of type T and throws if it's missing.
template<typename Interface>
std::shared_ptr< Interface >	getInterfaceComponent () const
	Returns the first component that implements the specified interface.

Additional Inherited Members
Static Public Member Functions inherited from wEngine::Entity
static void	resetEntityIDCounter ()
	Resets the global entity ID counter to zero.

Detailed Description

Central entity responsible for graphical rendering in wPlot2D.

The GraphicsEntity manages the creation and control of the SFML rendering window. It provides high-level methods to add and configure graphical entities:

Axes (X and Y),
Titles (main or custom text),
Functions and raw data plots,
Legends,
Lines (with or without arrows).

It also handles window configuration (title, size, background color) and allows exporting the final rendering to an image file.

Note: This class is intended to be the main entry point for user interaction with the rendering system.

Author: Wilfried Koch

Copyright: © 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

◆ GraphicsEntity()

wPlot2D::GraphicsEntity::GraphicsEntity	(	const std::string &	windowTitle = "wPlot2D",
		const sf::Vector2u &	windowSize = { 1600, 1600 },
		const sf::Vector2f &	originFactor = { 0.5f, 0.5f },
		const sf::Vector2f &	scaleFactor = { 0.1f, 0.1f } )

Constructs the graphics entity and initializes the rendering window and components.

Parameters

windowTitle	The title displayed on the window (default: "wPlot2D").
windowSize	Window dimensions in pixels (default: 1600×1600).
originFactor	Normalized factor in [0,1]x[0,1] specifying the origin’s relative position (default: ( 0.5f, 0.5f ).
scaleFactor	Normalized factor specifying the size of one logical unit relative to window dimensions (default: ( 0.1f, 0.1f )).

Exceptions

std::invalid_argument if originFactor not in [0,1].

◆ ~GraphicsEntity()

virtual wPlot2D::GraphicsEntity::~GraphicsEntity ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ getWindow()

sf::RenderWindow & wPlot2D::GraphicsEntity::getWindow ( )

nodiscard

Gives access to the internal SFML window.

Returns: Reference to the internal sf::RenderWindow.

◆ getWindowSize()

sf::Vector2u wPlot2D::GraphicsEntity::getWindowSize ( ) const

nodiscard

Retrieves the current window size.

Returns: Window size in pixels.

◆ setWindowSize()

void wPlot2D::GraphicsEntity::setWindowSize ( const sf::Vector2u & newSize )

Sets a new window size.

Parameters

newSize Window dimensions in pixels.

◆ setWindowTitle()

void wPlot2D::GraphicsEntity::setWindowTitle ( const std::string & title )

Updates the window title.

Parameters

title New window title.

◆ setBackgroundColor()

void wPlot2D::GraphicsEntity::setBackgroundColor ( const sf::Color & color )

Clears the window with a background color.

Parameters

color Background fill color.

◆ addFont()

void wPlot2D::GraphicsEntity::addFont	(	const std::string &	name,
		const std::string &	fileName )

Adds a font to the AssetManager.

Parameters

name	Identifier string for the font.
fileName	Path to the font file.

◆ getFont()

sf::Font & wPlot2D::GraphicsEntity::getFont ( const std::string name )

Retrieves a previously loaded font.

Parameters

name	Identifier of the font.

Returns: Reference to the sf::Font.

Exceptions

std::runtime_error if the font is not found.

◆ getOrigin()

sf::Vector2f wPlot2D::GraphicsEntity::getOrigin ( ) const

nodiscard

Returns the current logical origin (in pixels).

Returns: Origin position in pixel coordinates.

Exceptions

std::runtime_error if the PositionComponent is missing.

◆ setOrigin()

void wPlot2D::GraphicsEntity::setOrigin ( sf::Vector2f originFactor )

Sets a new logical origin (normalized).

Parameters

originFactor in [0,1]×[0,1] new relative origin.

Exceptions

std::invalid_argument if originFactor is outside [0,1].

◆ getScale()

sf::Vector2f wPlot2D::GraphicsEntity::getScale ( ) const

nodiscard

Returns the scale factors (pixels per logical unit).

Returns: Scaling vector.

Exceptions

std::runtime_error if the ScaleComponent is missing.

◆ setScale()

void wPlot2D::GraphicsEntity::setScale ( sf::Vector2f scaleFactor )

Sets new scale factors (normalized).

Parameters

scaleFactor new scaling factor

◆ getOffset()

sf::Vector2f wPlot2D::GraphicsEntity::getOffset ( ) const

nodiscard

Returns the current logical offset.

Returns: Offset vector in logical units.

Exceptions

std::runtime_error if the OffsetComponent is missing.

◆ setOffset()

void wPlot2D::GraphicsEntity::setOffset ( sf::Vector2f offset )

Sets the logical offset applied to the axes.

Parameters

offset Displacement in logical units.

◆ addAxis()

AxisEntity * wPlot2D::GraphicsEntity::addAxis	(	AxisType	type,
		sf::Vector2f	axisRange )

nodiscard

Adds an axis (X or Y) to the scene.

Parameters

type	Axis type.
axisRange	Logical range for the axis.

Returns: Pointer to the created AxisEntity.

◆ addTitle() [1/2]

TitleEntity * wPlot2D::GraphicsEntity::addTitle	(	const std::string &	title,
		TitleAlignment	alignment = TitleAlignment::Bottom )

nodiscard

Adds a main plot title (top or bottom).

Parameters

title	Title text (UTF-8).
alignment	Vertical alignment (default: bottom).

Returns: Pointer to the created TitleEntity.

◆ addTitle() [2/2]

TitleEntity * wPlot2D::GraphicsEntity::addTitle	(	const std::wstring &	title,
		TitleAlignment	alignment = TitleAlignment::Bottom )

nodiscard

Adds a main plot title (top or bottom).

Parameters

title	Title text (UTF-16/32).
alignment	Vertical alignment (default: bottom).

Returns: Pointer to the created TitleEntity.

◆ addFunction()

FunctionEntity * wPlot2D::GraphicsEntity::addFunction	(	std::function< double(double)>	func,
		double	startX,
		double	endX,
		size_t	nbPoints = 1000 )

nodiscard

Adds a mathematical function to the scene.

Parameters

func	Function of type double(double).
startX	Domain start (logical).
endX	Domain end (logical).
nbPoints	Sampling resolution (default 1000).

Returns: Pointer to the created FunctionEntity.

◆ addDataPlot()

DataPlotEntity * wPlot2D::GraphicsEntity::addDataPlot ( const std::vector< sf::Vector2f > & dataPoints )

nodiscard

Adds a raw data plot (connected points).

Parameters

dataPoints Vector of (x,y) coordinates.

Returns: Pointer to the created DataPlotEntity.

◆ addLegend()

LegendEntity * wPlot2D::GraphicsEntity::addLegend	(	const sf::Vector2f &	position,
		bool	hasFrame = true )

nodiscard

Adds a legend box at a given position.

Parameters

position	Normalized position inside window [0,1]x[0,1].
hasFrame	Whether the legend frame is visible (default true).

Returns: Pointer to the created LegendEntity.

◆ addText() [1/2]

TitleEntity * wPlot2D::GraphicsEntity::addText	(	const std::string &	text,
		sf::Vector2f	position )

nodiscard

Adds arbitrary text to the scene.

Parameters

text	Text string (UTF-8).
position	Normalized position in [0,1]x[0,1].

Returns: Pointer to the created TitleEntity.

◆ addText() [2/2]

TitleEntity * wPlot2D::GraphicsEntity::addText	(	const std::wstring &	text,
		sf::Vector2f	position )

nodiscard

Adds arbitrary text to the scene.

Parameters

text	Text string (UTF-16/32).
position	Normalized position in [0,1]x[0,1].

Returns: Pointer to the created TitleEntity.

◆ addLine()

LineEntity * wPlot2D::GraphicsEntity::addLine	(	const sf::Vector2f &	start,
		const sf::Vector2f &	end,
		bool	withArrow = false )

nodiscard

Adds a line segment to the scene.

Parameters

start	Start point in logical coordinates.
end	End point in logical coordinates.
withArrow	Whether to render an arrowhead at the end.

Returns: Pointer to the created LineEntity.

◆ saveToFile()

void wPlot2D::GraphicsEntity::saveToFile ( const std::string & filename )

Saves a screenshot of the current window.

Parameters

filename Output file path (supported: png, bmp, tga, jpg).

Exceptions

std::runtime_error if saving fails.

The documentation for this class was generated from the following files:

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GraphicsEntity()

◆ ~GraphicsEntity()

Member Function Documentation

◆ getWindow()

◆ getWindowSize()

◆ setWindowSize()

◆ setWindowTitle()

◆ setBackgroundColor()

◆ addFont()

◆ getFont()

◆ getOrigin()

◆ setOrigin()

◆ getScale()

◆ setScale()

◆ getOffset()

◆ setOffset()

◆ addAxis()

◆ addTitle() [1/2]

◆ addTitle() [2/2]

◆ addFunction()

◆ addDataPlot()

◆ addLegend()

◆ addText() [1/2]

◆ addText() [2/2]

◆ addLine()

◆ saveToFile()
