Represents a visual axis (X or Y) in a 2D plot with optional notches and title. More...

#include <wAxisEntity.hpp>

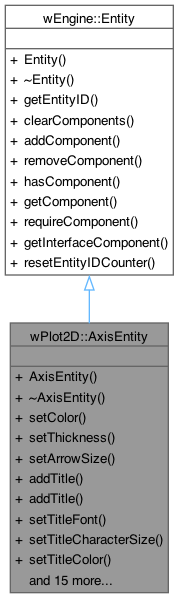

Inheritance diagram for wPlot2D::AxisEntity:

Public Member Functions
	AxisEntity (sf::Font &font, sf::Vector2f origin, sf::Vector2f scale, sf::Vector2f offset, AxisType type, sf::Vector2f axisRange)
	Constructs an AxisEntity with a given orientation, origin, scale, and range.
virtual	~AxisEntity ()=default
	Virtual destructor.
void	setColor (sf::Color color)
	Sets the color of the axis line.
void	setThickness (float thickness)
	Sets the thickness of the axis line (in pixels).
void	setArrowSize (float arrowSize)
	Sets the size of the arrowhead at the end of the axis.
void	addTitle (const std::string &title)
	Adds a title to the axis.
void	addTitle (const std::wstring &title)
	Adds a title to the axis.
void	setTitleFont (const sf::Font &font)
	Sets the font of the axis title.
void	setTitleCharacterSize (unsigned int size)
	Sets the character size of the axis title.
void	setTitleColor (sf::Color newColor)
	Sets the color of the axis title.
void	setTitleOffset (sf::Vector2f titleOffset)
	Sets a manual offset for the title position.
sf::Vector2f	getTitleOffset () const
	Gets the current title offset.
void	addNotches (float interval, NotchPosition position, bool hasLabels=false)
	Adds notches along the axis.
void	setNotchesColor (const sf::Color &color)
	Sets the color of all notches.
void	setNotchesThickness (float thickness)
	Sets the thickness of all notches.
void	setNotchesLength (float newLength)
	Sets the length of all notches.
void	setLabelsFont (const sf::Font &font)
	Sets the font of all labels.
void	setLabelsColor (const sf::Color &color)
	Sets the color of all labels.
std::vector< sf::Vector2f >	getLabelsOffset () const
	Gets the current offset of all labels.
void	setLabelsOffset (sf::Vector2f offset)
	Sets a new offset for all labels.
void	addLabelsOffset (sf::Vector2f delta)
	Applies an additional offset to all labels.
void	setLabelsCharacterSize (unsigned int newSize)
	Sets the character size of all labels.
void	setLabelsDecimalPlaces (int places)
	Sets the number of decimal places for numeric labels.
void	setCustomLabels (const std::vector< std::string > &labels)
	Replaces numeric labels with a custom set of strings.
void	render (sf::RenderWindow &window)
	Renders the axis (line, arrow, title, notches, labels).
Public Member Functions inherited from wEngine::Entity
	Entity ()
virtual	~Entity ()
unsigned int	getEntityID () const
	Returns the unique ID associated with this entity.
void	clearComponents ()
	Removes all components currently attached to the entity.
template<typename T, typename... Args>
std::shared_ptr< T >	addComponent (Args &&... args)
	Adds a new component of type T to the entity.
template<typename T>
void	removeComponent ()
	Removes the component of type T from the entity.
template<typename T>
bool	hasComponent () const noexcept
	Checks whether the entity has a component of type T.
template<typename T>
std::shared_ptr< T >	getComponent () const
	Retrieves the component of type T attached to the entity.
template<typename T>
std::shared_ptr< T >	requireComponent (const std::string &context="") const
	Retrieves the component of type T and throws if it's missing.
template<typename Interface>
std::shared_ptr< Interface >	getInterfaceComponent () const
	Returns the first component that implements the specified interface.

Additional Inherited Members
Static Public Member Functions inherited from wEngine::Entity
static void	resetEntityIDCounter ()
	Resets the global entity ID counter to zero.

Detailed Description

Represents a visual axis (X or Y) in a 2D plot with optional notches and title.

This class manages the rendering of a coordinate axis in a Cartesian 2D system. It supports:

Rendering of an axis line with an arrowhead.
Adding notches (tick marks) with optional labels.
Attaching a customizable axis title.

See also: TitleEntity, LabelEntity, NotchEntity, LineEntity

Author: Wilfried Koch

Copyright: © 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

◆ AxisEntity()

wPlot2D::AxisEntity::AxisEntity	(	sf::Font &	font,
		sf::Vector2f	origin,
		sf::Vector2f	scale,
		sf::Vector2f	offset,
		AxisType	type,
		sf::Vector2f	axisRange )

Constructs an AxisEntity with a given orientation, origin, scale, and range.

Parameters

font	Reference to a font used for the title and labels.
origin	Pixel position of the logical origin (typically from GraphicsEntity).
scale	Scaling factor (pixels per logical unit).
offset	Logical displacement of the axis system.
type	Axis type (X_AXIS or Y_AXIS).
axisRange	Logical range covered by the axis (e.g., [-5, 5]).

◆ ~AxisEntity()

virtual wPlot2D::AxisEntity::~AxisEntity ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ setColor()

void wPlot2D::AxisEntity::setColor ( sf::Color color )

Sets the color of the axis line.

Parameters

color New axis color.

Exceptions

std::runtime_error if ColorComponent is missing.

◆ setThickness()

void wPlot2D::AxisEntity::setThickness ( float thickness )

Sets the thickness of the axis line (in pixels).

Parameters

thickness New thickness (must be > 0).

Exceptions

std::invalid_argument	if thickness <= 0.
std::runtime_error	if ThicknessComponent is missing.

◆ setArrowSize()

void wPlot2D::AxisEntity::setArrowSize ( float arrowSize )

Sets the size of the arrowhead at the end of the axis.

Parameters

arrowSize Arrowhead size in pixels.

◆ addTitle() [1/2]

void wPlot2D::AxisEntity::addTitle ( const std::string & title )

Adds a title to the axis.

Parameters

title Title string (narrow string).

◆ addTitle() [2/2]

void wPlot2D::AxisEntity::addTitle ( const std::wstring & title )

Adds a title to the axis.

Parameters

title Title string (wide string).

◆ setTitleFont()

void wPlot2D::AxisEntity::setTitleFont ( const sf::Font & font )

Sets the font of the axis title.

Parameters

font	Reference to an SFML font.

◆ setTitleCharacterSize()

void wPlot2D::AxisEntity::setTitleCharacterSize ( unsigned int size )

Sets the character size of the axis title.

Parameters

size	Character size in pixels.

◆ setTitleColor()

void wPlot2D::AxisEntity::setTitleColor ( sf::Color newColor )

Sets the color of the axis title.

Parameters

newColor New text color.

◆ setTitleOffset()

void wPlot2D::AxisEntity::setTitleOffset ( sf::Vector2f titleOffset )

Sets a manual offset for the title position.

Parameters

titleOffset Pixel offset applied to the title position.

◆ getTitleOffset()

sf::Vector2f wPlot2D::AxisEntity::getTitleOffset ( ) const

nodiscard

Gets the current title offset.

Returns: Offset vector in pixels.

◆ addNotches()

void wPlot2D::AxisEntity::addNotches	(	float	interval,
		NotchPosition	position,
		bool	hasLabels = false )

Adds notches along the axis.

Parameters

interval	Logical spacing between notches (> 0).
position	Placement relative to axis (Center, Above, Below).
hasLabels	If true, labels are displayed for each notch.

◆ setNotchesColor()

void wPlot2D::AxisEntity::setNotchesColor ( const sf::Color & color )

Sets the color of all notches.

Parameters

color New notch color.

◆ setNotchesThickness()

void wPlot2D::AxisEntity::setNotchesThickness ( float thickness )

Sets the thickness of all notches.

Parameters

thickness New thickness in pixels.

◆ setNotchesLength()

void wPlot2D::AxisEntity::setNotchesLength ( float newLength )

Sets the length of all notches.

Parameters

newLength New length in pixels.

◆ setLabelsFont()

void wPlot2D::AxisEntity::setLabelsFont ( const sf::Font & font )

Sets the font of all labels.

Parameters

font	Reference to an SFML font.

◆ setLabelsColor()

void wPlot2D::AxisEntity::setLabelsColor ( const sf::Color & color )

Sets the color of all labels.

Parameters

color New text color.

◆ getLabelsOffset()

std::vector< sf::Vector2f > wPlot2D::AxisEntity::getLabelsOffset ( ) const

nodiscard

Gets the current offset of all labels.

Returns: Vector of offsets (one per label).

◆ setLabelsOffset()

void wPlot2D::AxisEntity::setLabelsOffset ( sf::Vector2f offset )

Sets a new offset for all labels.

Parameters

offset Offset vector in pixels.

◆ addLabelsOffset()

void wPlot2D::AxisEntity::addLabelsOffset ( sf::Vector2f delta )

Applies an additional offset to all labels.

Parameters

delta Delta offset in pixels.

◆ setLabelsCharacterSize()

void wPlot2D::AxisEntity::setLabelsCharacterSize ( unsigned int newSize )

Sets the character size of all labels.

Parameters

newSize Character size in pixels.

◆ setLabelsDecimalPlaces()

void wPlot2D::AxisEntity::setLabelsDecimalPlaces ( int places )

Sets the number of decimal places for numeric labels.

Parameters

places Digits after decimal point (>= 0).

◆ setCustomLabels()

void wPlot2D::AxisEntity::setCustomLabels ( const std::vector< std::string > & labels )

Replaces numeric labels with a custom set of strings.

Parameters

labels Vector of user-defined label strings.

◆ render()

void wPlot2D::AxisEntity::render ( sf::RenderWindow & window )

Renders the axis (line, arrow, title, notches, labels).

Parameters

window Target render window.

The documentation for this class was generated from the following files:
