wPlot2D::LineEntity Class Reference

Entity representing a straight line segment with optional arrowhead. More...

#include <wLineEntity.hpp>

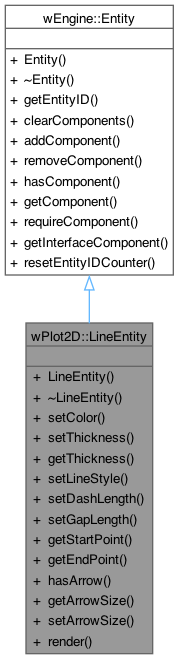

Inheritance diagram for wPlot2D::LineEntity:

Public Member Functions
	LineEntity (const sf::Vector2f &origin, const sf::Vector2f &scale, const sf::Vector2f &start, const sf::Vector2f &end, bool withArrow=false)
	Construct a line entity between two points.
virtual	~LineEntity ()=default
	Virtual destructor.
void	setColor (sf::Color color)
	Sets the color of the line and arrowhead.
void	setThickness (float thickness)
	Sets the thickness of the line.
float	getThickness () const
	Returns the current thickness of the line.
void	setLineStyle (wEngine::LineStyleComponent::LineStyle style)
	Sets the visual style of the line.
void	setDashLength (float dashLength)
	Sets the dash length for dashed lines.
void	setGapLength (float gapLength)
	Sets the gap length between dashes or dots.
sf::Vector2f	getStartPoint () const
	Returns the starting point of the line.
sf::Vector2f	getEndPoint () const
	Returns the ending point of the line.
bool	hasArrow () const
	Checks if the line has an arrowhead.
float	getArrowSize () const
	Returns the arrowhead size factor.
void	setArrowSize (float arrowSize)
	Sets the arrowhead size factor.
void	render (sf::RenderWindow &window)
	Renders the line (and optional arrowhead).
Public Member Functions inherited from wEngine::Entity
	Entity ()
virtual	~Entity ()
unsigned int	getEntityID () const
	Returns the unique ID associated with this entity.
void	clearComponents ()
	Removes all components currently attached to the entity.
template<typename T, typename... Args>
std::shared_ptr< T >	addComponent (Args &&... args)
	Adds a new component of type T to the entity.
template<typename T>
void	removeComponent ()
	Removes the component of type T from the entity.
template<typename T>
bool	hasComponent () const noexcept
	Checks whether the entity has a component of type T.
template<typename T>
std::shared_ptr< T >	getComponent () const
	Retrieves the component of type T attached to the entity.
template<typename T>
std::shared_ptr< T >	requireComponent (const std::string &context="") const
	Retrieves the component of type T and throws if it's missing.
template<typename Interface>
std::shared_ptr< Interface >	getInterfaceComponent () const
	Returns the first component that implements the specified interface.

Additional Inherited Members
Static Public Member Functions inherited from wEngine::Entity
static void	resetEntityIDCounter ()
	Resets the global entity ID counter to zero.

Detailed Description

Entity representing a straight line segment with optional arrowhead.

This entity provides configurable line rendering within the plot area:

• Supports Solid, Dashed, and Dotted styles (via LineStyleComponent).
• Customizable color, thickness, dash length, and gap length.
• Optional arrowhead at the end (useful for axes or vectors).

Coordinates are expressed in logical units and transformed by the entity’s origin and scale before being rendered.

See also

wEngine::LineDrawer for the rendering implementation

wEngine::LineStyleComponent for style configuration

Author

Wilfried Koch

Copyright

© 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

LineEntity()

wPlot2D::LineEntity::LineEntity	(	const sf::Vector2f &	origin,
		const sf::Vector2f &	scale,
		const sf::Vector2f &	start,
		const sf::Vector2f &	end,
		bool	withArrow = false )

Construct a line entity between two points.

Parameters

origin	Origin of the plot (reference point).
scale	Scaling factor to convert logical coordinates into pixels.
start	Line starting point (logical coordinates).
end	Line ending point (logical coordinates).
withArrow	Whether to draw an arrowhead at the end.

~LineEntity()

virtual wPlot2D::LineEntity::~LineEntity ( )

virtualdefault

Virtual destructor.

Member Function Documentation

setColor()

void wPlot2D::LineEntity::setColor

(

sf::Color

color

)

Sets the color of the line and arrowhead.

Parameters

color

New color to apply.

setThickness()

void wPlot2D::LineEntity::setThickness

(

float

thickness

)

Sets the thickness of the line.

Parameters

thickness

Thickness in pixels.

getThickness()

float wPlot2D::LineEntity::getThickness ( ) const

nodiscard

Returns the current thickness of the line.

Returns

Thickness in pixels.

setLineStyle()

void wPlot2D::LineEntity::setLineStyle

(

wEngine::LineStyleComponent::LineStyle

style

)

Sets the visual style of the line.

Parameters

style

Solid, Dashed, or Dotted.

setDashLength()

void wPlot2D::LineEntity::setDashLength

(

float

dashLength

)

Sets the dash length for dashed lines.

Parameters

dashLength

Length of each dash in pixels.

setGapLength()

void wPlot2D::LineEntity::setGapLength

(

float

gapLength

)

Sets the gap length between dashes or dots.

Parameters

gapLength

Length of the gap in pixels.

getStartPoint()

sf::Vector2f wPlot2D::LineEntity::getStartPoint ( ) const

nodiscard

Returns the starting point of the line.

Returns

Start point in logical coordinates.

getEndPoint()

sf::Vector2f wPlot2D::LineEntity::getEndPoint ( ) const

nodiscard

Returns the ending point of the line.

Returns

End point in logical coordinates.

hasArrow()

bool wPlot2D::LineEntity::hasArrow ( ) const

nodiscard

Checks if the line has an arrowhead.

Returns

True if an arrowhead is drawn, false otherwise.

getArrowSize()

float wPlot2D::LineEntity::getArrowSize ( ) const

nodiscard

Returns the arrowhead size factor.

Returns

Arrow size relative to line thickness.

setArrowSize()

void wPlot2D::LineEntity::setArrowSize

(

float

arrowSize

)

Sets the arrowhead size factor.

Parameters

arrowSize

Arrow size relative to line thickness.

render()

void wPlot2D::LineEntity::render

(

sf::RenderWindow &

window

)

Renders the line (and optional arrowhead).

Parameters

window

Target render window.

---

The documentation for this class was generated from the following files:

• wLineEntity.hpp
• wLineEntity.cpp
