Represents a textual label (typically an axis title or main plot title) in a 2D plot. More...

#include <wTitleEntity.hpp>

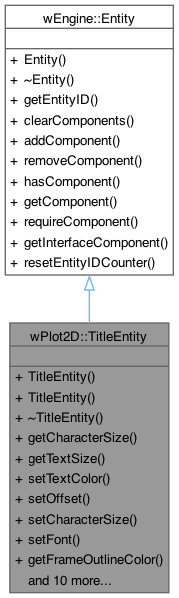

Inheritance diagram for wPlot2D::TitleEntity:

Public Member Functions
	TitleEntity (const sf::Font &font, const std::string &title, bool hasFrame=false)
	Constructs a title entity with specified font and text (UTF-8).
	TitleEntity (const sf::Font &font, const std::wstring &title, bool hasFrame=false)
	Constructs a title entity with specified font and wide string (UTF-16/32).
virtual	~TitleEntity ()=default
	Virtual destructor.
unsigned int	getCharacterSize () const
	Returns the current character size.
sf::FloatRect	getTextSize () const
	Returns the local bounding box of the title text.
void	setTextColor (sf::Color textColor)
	Sets the text color.
void	setOffset (sf::Vector2f offset)
	Sets the offset relative to the base anchor position.
void	setCharacterSize (unsigned int size)
	Sets the font size (character size) of the title.
void	setFont (const sf::Font &font)
	Sets the font reference for the title.
sf::Color	getFrameOutlineColor () const
	Returns the current outline color of the frame.
sf::Color	getFrameFillColor () const
	Returns the current fill color of the frame.
float	getFrameThickness () const
	Returns the frame's outline thickness.
sf::Vector2f	getPadding () const
	Returns the internal padding of the frame.
bool	isFrameEnabled () const
	Returns whether the title has a visible frame.
void	setFrameEnabled (bool enabled)
	Enables or disables the visual frame.
void	setFrameOutlineColor (const sf::Color &color)
	Sets the frame's outline color.
void	setFrameFillColor (const sf::Color &color)
	Sets the fill color of the frame.
void	setFrameThickness (float thickness)
	Sets the thickness of the frame's outline.
void	setPadding (sf::Vector2f padding)
	Sets the internal padding of the frame (horizontal and vertical).
void	render (sf::RenderWindow &window)
	Renders the title and its frame (if enabled) to the window.
Public Member Functions inherited from wEngine::Entity
	Entity ()
virtual	~Entity ()
unsigned int	getEntityID () const
	Returns the unique ID associated with this entity.
void	clearComponents ()
	Removes all components currently attached to the entity.
template<typename T, typename... Args>
std::shared_ptr< T >	addComponent (Args &&... args)
	Adds a new component of type T to the entity.
template<typename T>
void	removeComponent ()
	Removes the component of type T from the entity.
template<typename T>
bool	hasComponent () const noexcept
	Checks whether the entity has a component of type T.
template<typename T>
std::shared_ptr< T >	getComponent () const
	Retrieves the component of type T attached to the entity.
template<typename T>
std::shared_ptr< T >	requireComponent (const std::string &context="") const
	Retrieves the component of type T and throws if it's missing.
template<typename Interface>
std::shared_ptr< Interface >	getInterfaceComponent () const
	Returns the first component that implements the specified interface.

Additional Inherited Members
Static Public Member Functions inherited from wEngine::Entity
static void	resetEntityIDCounter ()
	Resets the global entity ID counter to zero.

Detailed Description

Represents a textual label (typically an axis title or main plot title) in a 2D plot.

A TitleEntity displays text using SFML's sf::Text, styled and positioned using ECS components (PositionComponent, OffsetComponent, ColorComponent, FontComponent). Optionally, it can display a surrounding rectangular frame (FrameEntity) with customizable outline, fill color, thickness, and padding.

Notes:

The font passed to the constructor must remain valid during the lifetime of the entity (SFML does not copy font data).
The frame is disabled by default unless explicitly enabled at construction or later.

See also: FrameEntity, AxisEntity, GraphicsEntity

Author: Wilfried Koch

Copyright: © 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

◆ TitleEntity() [1/2]

wPlot2D::TitleEntity::TitleEntity	(	const sf::Font &	font,
		const std::string &	title,
		bool	hasFrame = false )

Constructs a title entity with specified font and text (UTF-8).

Parameters

font	Reference to an externally managed font (must remain valid).
title	The string to display.
hasFrame	Whether a surrounding frame should be displayed.

◆ TitleEntity() [2/2]

wPlot2D::TitleEntity::TitleEntity	(	const sf::Font &	font,
		const std::wstring &	title,
		bool	hasFrame = false )

Constructs a title entity with specified font and wide string (UTF-16/32).

Parameters

font	Reference to an externally managed font (must remain valid).
title	The wide string to display.
hasFrame	Whether a surrounding frame should be displayed.

◆ ~TitleEntity()

virtual wPlot2D::TitleEntity::~TitleEntity ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ getCharacterSize()

unsigned int wPlot2D::TitleEntity::getCharacterSize ( ) const

nodiscard

Returns the current character size.

Returns: Character size (font size in pixels).

◆ getTextSize()

sf::FloatRect wPlot2D::TitleEntity::getTextSize ( ) const

nodiscard

Returns the local bounding box of the title text.

Returns: A FloatRect representing the size and local origin of the text.

◆ setTextColor()

void wPlot2D::TitleEntity::setTextColor ( sf::Color textColor )

Sets the text color.

Parameters

textColor New SFML color.

◆ setOffset()

void wPlot2D::TitleEntity::setOffset ( sf::Vector2f offset )

Sets the offset relative to the base anchor position.

Parameters

offset Displacement vector in pixels.

◆ setCharacterSize()

void wPlot2D::TitleEntity::setCharacterSize ( unsigned int size )

Sets the font size (character size) of the title.

Parameters

size	Size in pixels.

◆ setFont()

void wPlot2D::TitleEntity::setFont ( const sf::Font & font )

Sets the font reference for the title.

Parameters

font	Reference to an externally managed font (must remain valid).

Note: The font must outlive this entity, otherwise rendering will be invalid.

◆ getFrameOutlineColor()

sf::Color wPlot2D::TitleEntity::getFrameOutlineColor ( ) const

nodiscard

Returns the current outline color of the frame.

Returns: SFML color.

◆ getFrameFillColor()

sf::Color wPlot2D::TitleEntity::getFrameFillColor ( ) const

nodiscard

Returns the current fill color of the frame.

Returns: SFML color.

◆ getFrameThickness()

float wPlot2D::TitleEntity::getFrameThickness ( ) const

nodiscard

Returns the frame's outline thickness.

Returns: Thickness in pixels.

◆ getPadding()

sf::Vector2f wPlot2D::TitleEntity::getPadding ( ) const

nodiscard

Returns the internal padding of the frame.

Returns: Padding vector { x, y } in pixels.

◆ isFrameEnabled()

bool wPlot2D::TitleEntity::isFrameEnabled ( ) const

nodiscard

Returns whether the title has a visible frame.

Returns: True if frame is enabled.

◆ setFrameEnabled()

void wPlot2D::TitleEntity::setFrameEnabled ( bool enabled )

Enables or disables the visual frame.

Parameters

enabled True to show the frame, false to hide it.

◆ setFrameOutlineColor()

void wPlot2D::TitleEntity::setFrameOutlineColor ( const sf::Color & color )

Sets the frame's outline color.

Parameters

color SFML color.

◆ setFrameFillColor()

void wPlot2D::TitleEntity::setFrameFillColor ( const sf::Color & color )

Sets the fill color of the frame.

Parameters

color SFML color.

◆ setFrameThickness()

void wPlot2D::TitleEntity::setFrameThickness ( float thickness )

Sets the thickness of the frame's outline.

Parameters

thickness Outline thickness in pixels.

◆ setPadding()

void wPlot2D::TitleEntity::setPadding ( sf::Vector2f padding )

Sets the internal padding of the frame (horizontal and vertical).

This creates a margin between the text and the frame borders. Expressed as (horizontal, vertical) padding in pixels.

Parameters

padding Vector of type (left/right, top/bottom) padding.

◆ render()

void wPlot2D::TitleEntity::render ( sf::RenderWindow & window )

Renders the title and its frame (if enabled) to the window.

The title position is computed from:

PositionComponent (anchor point),
OffsetComponent (displacement),
the text's local bounds (centered origin).

If the frame is enabled, it is rendered behind the text, centered with the same anchor point and adjusted using the specified padding.

Parameters

window The target SFML render window.

The documentation for this class was generated from the following files:
