wPlot2D::DataPlotEntity Class Reference

Entity for plotting raw data points as a connected polyline. More...

#include <wDataPlotEntity.hpp>

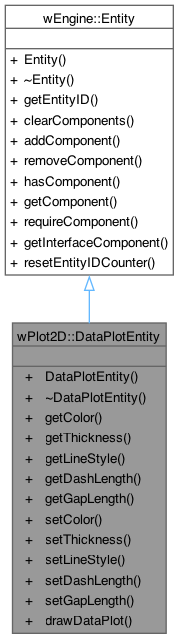

Inheritance diagram for wPlot2D::DataPlotEntity:

Public Member Functions
	DataPlotEntity (const sf::Vector2f origin, const sf::Vector2f scale, const std::vector< sf::Vector2f > &dataPoints)
	Constructs a DataPlotEntity with given origin, scale, and raw data points.
virtual	~DataPlotEntity ()=default
	Virtual destructor.
sf::Color	getColor () const
	Get the current line color.
float	getThickness ()
	Get the line thickness in pixels.
wEngine::LineStyleComponent::LineStyle	getLineStyle ()
	Get the current line style.
float	getDashLength ()
	Get the dash length for dashed lines.
float	getGapLength ()
	Get the gap length for dashed/dotted lines.
void	setColor (sf::Color color)
	Sets the color of the plotted line.
void	setThickness (float thickness)
	Sets the line thickness in pixels.
void	setLineStyle (wEngine::LineStyleComponent::LineStyle style)
	Sets the line style (Solid, Dashed, or Dotted).
void	setDashLength (float dashLength)
	Sets the dash length for dashed lines.
void	setGapLength (float gapLength)
	Sets the gap length between dashes or dots.
void	drawDataPlot (sf::RenderWindow &window)
	Draws the connected data points to the window.
Public Member Functions inherited from wEngine::Entity
	Entity ()
virtual	~Entity ()
unsigned int	getEntityID () const
	Returns the unique ID associated with this entity.
void	clearComponents ()
	Removes all components currently attached to the entity.
template<typename T, typename... Args>
std::shared_ptr< T >	addComponent (Args &&... args)
	Adds a new component of type T to the entity.
template<typename T>
void	removeComponent ()
	Removes the component of type T from the entity.
template<typename T>
bool	hasComponent () const noexcept
	Checks whether the entity has a component of type T.
template<typename T>
std::shared_ptr< T >	getComponent () const
	Retrieves the component of type T attached to the entity.
template<typename T>
std::shared_ptr< T >	requireComponent (const std::string &context="") const
	Retrieves the component of type T and throws if it's missing.
template<typename Interface>
std::shared_ptr< Interface >	getInterfaceComponent () const
	Returns the first component that implements the specified interface.

Additional Inherited Members
Static Public Member Functions inherited from wEngine::Entity
static void	resetEntityIDCounter ()
	Resets the global entity ID counter to zero.

Detailed Description

Entity for plotting raw data points as a connected polyline.

Stores a vector of raw (x,y) points and draws straight line segments between them. Each segment is rendered using the current line style (Solid, Dashed, Dotted), with configurable color, thickness, dash length, and gap length.

Note

Unlike FunctionEntity, this class does not evaluate a function — it directly uses the provided data points. The points are still transformed by the entity's origin and scale before rendering.

Author

Wilfried Koch

Copyright

© 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

DataPlotEntity()

wPlot2D::DataPlotEntity::DataPlotEntity	(	const sf::Vector2f	origin,
		const sf::Vector2f	scale,
		const std::vector< sf::Vector2f > &	dataPoints )

Constructs a DataPlotEntity with given origin, scale, and raw data points.

Parameters

origin	Origin of the plot in window coordinates.
scale	Scaling factors applied to x and y values.
dataPoints	Vector of raw (x,y) points to plot.

~DataPlotEntity()

virtual wPlot2D::DataPlotEntity::~DataPlotEntity ( )

virtualdefault

Virtual destructor.

Member Function Documentation

getColor()

sf::Color wPlot2D::DataPlotEntity::getColor ( ) const

nodiscard

Get the current line color.

Returns

The SFML color used for rendering the polyline.

getThickness()

float wPlot2D::DataPlotEntity::getThickness ( )

nodiscard

Get the line thickness in pixels.

Returns

Current thickness value.

getLineStyle()

wEngine::LineStyleComponent::LineStyle wPlot2D::DataPlotEntity::getLineStyle ( )

nodiscard

Get the current line style.

Returns

Solid, Dashed, or Dotted.

getDashLength()

float wPlot2D::DataPlotEntity::getDashLength ( )

nodiscard

Get the dash length for dashed lines.

Returns

Dash length in pixels.

getGapLength()

float wPlot2D::DataPlotEntity::getGapLength ( )

nodiscard

Get the gap length for dashed/dotted lines.

Returns

Gap length in pixels.

setColor()

void wPlot2D::DataPlotEntity::setColor

(

sf::Color

color

)

Sets the color of the plotted line.

Parameters

color

New SFML color.

setThickness()

void wPlot2D::DataPlotEntity::setThickness

(

float

thickness

)

Sets the line thickness in pixels.

Parameters

thickness

Line width.

setLineStyle()

void wPlot2D::DataPlotEntity::setLineStyle

(

wEngine::LineStyleComponent::LineStyle

style

)

Sets the line style (Solid, Dashed, or Dotted).

Parameters

style

New line style.

setDashLength()

void wPlot2D::DataPlotEntity::setDashLength

(

float

dashLength

)

Sets the dash length for dashed lines.

Parameters

dashLength

Length of each dash in pixels.

setGapLength()

void wPlot2D::DataPlotEntity::setGapLength

(

float

gapLength

)

Sets the gap length between dashes or dots.

Parameters

gapLength

Length of the gap in pixels.

drawDataPlot()

void wPlot2D::DataPlotEntity::drawDataPlot

(

sf::RenderWindow &

window

)

Draws the connected data points to the window.

The data points are transformed by scale and origin, then connected with styled line segments using LineDrawer::drawLine.

Parameters

window

Target SFML render window.

---

The documentation for this class was generated from the following files:

• wDataPlotEntity.hpp
• wDataPlotEntity.cpp
