wPlot2D::LabelEntity Class Reference

Represents a textual label or a collection of axis labels. More...

#include <wLabelEntity.hpp>

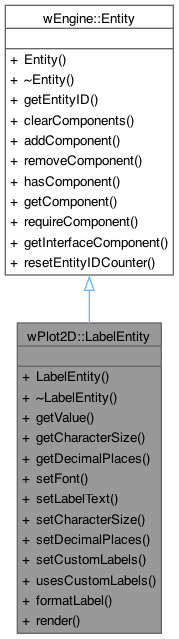

Inheritance diagram for wPlot2D::LabelEntity:

Public Member Functions
	LabelEntity (const sf::Font &font, AxisType type, sf::Vector2f initialPosition)
	Constructs a LabelEntity with a given font, axis orientation and initial position.
virtual	~LabelEntity ()=default
	Virtual destructor.
float	getValue () const
	Returns the numeric value associated with the label.
unsigned int	getCharacterSize () const
	Returns the current character size of the label text.
int	getDecimalPlaces () const
	Returns the number of decimal places currently used for numeric formatting.
void	setFont (const sf::Font &font)
	Sets a new font for the label.
void	setLabelText (std::string text)
	Defines the text content of the label.
void	setCharacterSize (unsigned int newSize)
	Sets a new character size for the labels.
void	setDecimalPlaces (int places)
	Sets the number of decimal places for numeric labels.
void	setCustomLabels (const std::string &labels)
	Sets a custom label string.
bool	usesCustomLabels () const
	Indicates whether the entity is currently using custom labels.
std::string	formatLabel (float value)
	Formats a numeric value into a label string.
void	render (sf::RenderWindow &window)
	Renders the label on the given SFML window.
Public Member Functions inherited from wEngine::Entity
	Entity ()
virtual	~Entity ()
unsigned int	getEntityID () const
	Returns the unique ID associated with this entity.
void	clearComponents ()
	Removes all components currently attached to the entity.
template<typename T, typename... Args>
std::shared_ptr< T >	addComponent (Args &&... args)
	Adds a new component of type T to the entity.
template<typename T>
void	removeComponent ()
	Removes the component of type T from the entity.
template<typename T>
bool	hasComponent () const noexcept
	Checks whether the entity has a component of type T.
template<typename T>
std::shared_ptr< T >	getComponent () const
	Retrieves the component of type T attached to the entity.
template<typename T>
std::shared_ptr< T >	requireComponent (const std::string &context="") const
	Retrieves the component of type T and throws if it's missing.
template<typename Interface>
std::shared_ptr< Interface >	getInterfaceComponent () const
	Returns the first component that implements the specified interface.

Additional Inherited Members
Static Public Member Functions inherited from wEngine::Entity
static void	resetEntityIDCounter ()
	Resets the global entity ID counter to zero.

Detailed Description

Represents a textual label or a collection of axis labels.

A LabelEntity manages the rendering of formatted text associated with axis notches. Labels can be generated dynamically (from numeric values, with controlled precision) or defined manually via custom strings.

The class relies on SFML's sf::Text for rendering and provides customization of style (font, color, character size) and placement (axis orientation, offset relative to the axis).

Note

Typically, a LabelEntity is aggregated inside an AxisEntity to display labels alongside axis notches.

See also

AxisEntity

Author

Wilfried Koch

Copyright

© 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

LabelEntity()

wPlot2D::LabelEntity::LabelEntity	(	const sf::Font &	font,
		AxisType	type,
		sf::Vector2f	initialPosition )

Constructs a LabelEntity with a given font, axis orientation and initial position.

Parameters

font	Reference to an SFML font (must remain valid during the lifetime of the entity).
type	Axis orientation (AxisType::X_AXIS or AxisType::Y_AXIS).
initialPosition	Position where the label will be anchored.

~LabelEntity()

virtual wPlot2D::LabelEntity::~LabelEntity ( )

virtualdefault

Virtual destructor.

Member Function Documentation

getValue()

float wPlot2D::LabelEntity::getValue ( ) const

nodiscard

Returns the numeric value associated with the label.

Returns

The value stored in the label.

getCharacterSize()

unsigned int wPlot2D::LabelEntity::getCharacterSize ( ) const

nodiscard

Returns the current character size of the label text.

Returns

Character size in pixels.

getDecimalPlaces()

int wPlot2D::LabelEntity::getDecimalPlaces ( ) const

nodiscard

Returns the number of decimal places currently used for numeric formatting.

Returns

Number of digits after the decimal point.

setFont()

void wPlot2D::LabelEntity::setFont

(

const sf::Font &

font

)

Sets a new font for the label.

Parameters

font	Reference to an SFML font (must remain valid during the lifetime of the entity).

setLabelText()

void wPlot2D::LabelEntity::setLabelText

(

std::string

text

)

Defines the text content of the label.

If custom labels are enabled, this method updates the string that will be rendered. Otherwise, it is generally managed internally via numeric formatting.

Parameters

text	The new string to assign to the label.

setCharacterSize()

void wPlot2D::LabelEntity::setCharacterSize

(

unsigned int

newSize

)

Sets a new character size for the labels.

Parameters

newSize

Character size in pixels.

setDecimalPlaces()

void wPlot2D::LabelEntity::setDecimalPlaces

(

int

places

)

Sets the number of decimal places for numeric labels.

Parameters

places

Digits after the decimal point (must be >= 0).

setCustomLabels()

void wPlot2D::LabelEntity::setCustomLabels

(

const std::string &

labels

)

Sets a custom label string.

This enables "custom label mode". When active, numeric formatting is ignored and the provided string is displayed instead.

Parameters

labels

Custom string to display as a label.

usesCustomLabels()

bool wPlot2D::LabelEntity::usesCustomLabels ( ) const

nodiscard

Indicates whether the entity is currently using custom labels.

Returns

True if custom labels are active, false if numeric formatting is used.

formatLabel()

std::string wPlot2D::LabelEntity::formatLabel

(

float

value

)

Formats a numeric value into a label string.

If custom labels are active, the stored custom string is returned. Otherwise, the numeric value is converted using the current number of decimal places.

Parameters

value

Numeric value to format.

Returns

A string ready to be displayed as a label.

render()

void wPlot2D::LabelEntity::render

(

sf::RenderWindow &

window

)

Renders the label on the given SFML window.

Parameters

window

Reference to the render window.

---

The documentation for this class was generated from the following files:

• wLabelEntity.hpp
• wLabelEntity.cpp
