Represents a single tick mark ("notch") on a 2D axis. More...

#include <wNotchEntity.hpp>

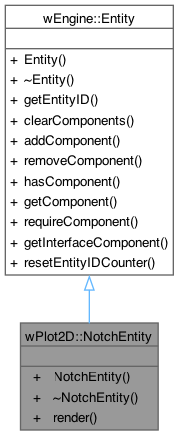

Inheritance diagram for wPlot2D::NotchEntity:

Public Member Functions
	NotchEntity (AxisType type)
	Constructs a NotchEntity aligned to a given axis.
virtual	~NotchEntity ()=default
	Virtual destructor.
void	render (sf::RenderWindow &window)
	Renders the notch using SFML.
Public Member Functions inherited from wEngine::Entity
	Entity ()
virtual	~Entity ()
unsigned int	getEntityID () const
	Returns the unique ID associated with this entity.
void	clearComponents ()
	Removes all components currently attached to the entity.
template<typename T, typename... Args>
std::shared_ptr< T >	addComponent (Args &&... args)
	Adds a new component of type T to the entity.
template<typename T>
void	removeComponent ()
	Removes the component of type T from the entity.
template<typename T>
bool	hasComponent () const noexcept
	Checks whether the entity has a component of type T.
template<typename T>
std::shared_ptr< T >	getComponent () const
	Retrieves the component of type T attached to the entity.
template<typename T>
std::shared_ptr< T >	requireComponent (const std::string &context="") const
	Retrieves the component of type T and throws if it's missing.
template<typename Interface>
std::shared_ptr< Interface >	getInterfaceComponent () const
	Returns the first component that implements the specified interface.

Additional Inherited Members
Static Public Member Functions inherited from wEngine::Entity
static void	resetEntityIDCounter ()
	Resets the global entity ID counter to zero.

Detailed Description

Represents a single tick mark ("notch") on a 2D axis.

A NotchEntity is a visual element used to mark intervals along a coordinate axis, helping users interpret scale in a plot. It is rendered as a small filled rectangle, oriented perpendicularly to its associated axis (X_AXIS or Y_AXIS).

Components required:

PositionComponent: specifies the top-left pixel position.
ColorComponent: defines the notch color.
ThicknessComponent: defines the thickness (along the axis).
LengthComponent: defines the length (perpendicular to the axis).

Orientation:

AxisType::X_AXIS : vertical notch (aligned with Y),
AxisType::Y_AXIS : horizontal notch (aligned with X).

The actual rendering logic is handled internally using sf::RectangleShape.

Note: Components must be added externally (typically by AxisEntity::addNotches( )).

See also: AxisEntity, AxisType, PositionComponent, LengthComponent, ThicknessComponent

Author: Wilfried Koch

Copyright: © 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

◆ NotchEntity()

wPlot2D::NotchEntity::NotchEntity ( AxisType type )

Constructs a NotchEntity aligned to a given axis.

Parameters

type	The axis type (X or Y) which determines notch orientation.

◆ ~NotchEntity()

virtual wPlot2D::NotchEntity::~NotchEntity ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ render()

void wPlot2D::NotchEntity::render ( sf::RenderWindow & window )

Renders the notch using SFML.

Builds a rectangle from ECS components (position, thickness, length, color) and draws it in the render window.

Exceptions

std::runtime_error if any required component is missing.

Parameters

window The render window to draw onto.

The documentation for this class was generated from the following files:
