wPlot2D::FrameEntity Class Reference

Entity representing a rectangular frame around content. More...

#include <wFrameEntity.hpp>

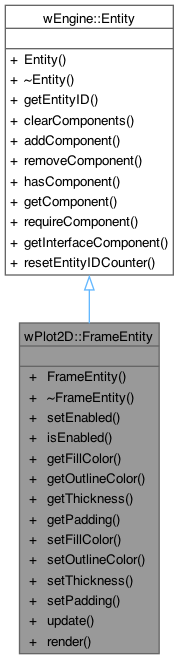

Inheritance diagram for wPlot2D::FrameEntity:

Public Member Functions
	FrameEntity (bool enabled=true)
	Constructs a frame entity.
virtual	~FrameEntity ()=default
	Virtual destructor.
void	setEnabled (bool enabled)
	Enables or disables the frame.
bool	isEnabled () const
	Checks whether the frame is currently enabled.
sf::Color	getFillColor () const
	Gets the current fill color of the frame.
sf::Color	getOutlineColor () const
	Gets the current outline color of the frame.
float	getThickness () const
	Gets the current outline thickness of the frame.
sf::Vector2f	getPadding () const
	Gets the current padding applied around the content.
void	setFillColor (const sf::Color &color)
	Sets the fill color of the frame.
void	setOutlineColor (const sf::Color &color)
	Sets the outline color of the frame.
void	setThickness (float thickness)
	Sets the outline thickness of the frame.
void	setPadding (const sf::Vector2f &padding)
	Sets the padding around the content.
void	update (const sf::FloatRect &contentBounds, const sf::Vector2f &position)
	Updates the size and position of the frame based on content bounds.
void	render (sf::RenderWindow &window)
	Renders the frame to the given render window.
Public Member Functions inherited from wEngine::Entity
	Entity ()
virtual	~Entity ()
unsigned int	getEntityID () const
	Returns the unique ID associated with this entity.
void	clearComponents ()
	Removes all components currently attached to the entity.
template<typename T, typename... Args>
std::shared_ptr< T >	addComponent (Args &&... args)
	Adds a new component of type T to the entity.
template<typename T>
void	removeComponent ()
	Removes the component of type T from the entity.
template<typename T>
bool	hasComponent () const noexcept
	Checks whether the entity has a component of type T.
template<typename T>
std::shared_ptr< T >	getComponent () const
	Retrieves the component of type T attached to the entity.
template<typename T>
std::shared_ptr< T >	requireComponent (const std::string &context="") const
	Retrieves the component of type T and throws if it's missing.
template<typename Interface>
std::shared_ptr< Interface >	getInterfaceComponent () const
	Returns the first component that implements the specified interface.

Additional Inherited Members
Static Public Member Functions inherited from wEngine::Entity
static void	resetEntityIDCounter ()
	Resets the global entity ID counter to zero.

Detailed Description

Entity representing a rectangular frame around content.

A FrameEntity is typically used to visually surround titles, legends, or other graphical content. It supports:

• Toggle visibility (enabled flag),
• Fill and outline colors,
• Outline thickness,
• Padding around the content.

The size of the frame is dynamically updated from the content bounds (see update( )).

Author

Wilfried Koch

Copyright

© 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

FrameEntity()

wPlot2D::FrameEntity::FrameEntity

(

bool

enabled = true

)

Constructs a frame entity.

Parameters

enabled

Whether the frame should be enabled initially.

~FrameEntity()

virtual wPlot2D::FrameEntity::~FrameEntity ( )

virtualdefault

Virtual destructor.

Member Function Documentation

setEnabled()

void wPlot2D::FrameEntity::setEnabled

(

bool

enabled

)

Enables or disables the frame.

Parameters

enabled

New enabled state.

isEnabled()

bool wPlot2D::FrameEntity::isEnabled ( ) const

nodiscard

Checks whether the frame is currently enabled.

Returns

True if the frame is enabled, false otherwise.

getFillColor()

sf::Color wPlot2D::FrameEntity::getFillColor ( ) const

nodiscard

Gets the current fill color of the frame.

Returns

Fill color.

getOutlineColor()

sf::Color wPlot2D::FrameEntity::getOutlineColor ( ) const

nodiscard

Gets the current outline color of the frame.

Returns

Outline color.

getThickness()

float wPlot2D::FrameEntity::getThickness ( ) const

nodiscard

Gets the current outline thickness of the frame.

Returns

Outline thickness (in pixels).

getPadding()

sf::Vector2f wPlot2D::FrameEntity::getPadding ( ) const

nodiscard

Gets the current padding applied around the content.

Returns

Padding as (x, y).

setFillColor()

void wPlot2D::FrameEntity::setFillColor

(

const sf::Color &

color

)

Sets the fill color of the frame.

Parameters

color

New fill color.

setOutlineColor()

void wPlot2D::FrameEntity::setOutlineColor

(

const sf::Color &

color

)

Sets the outline color of the frame.

Parameters

color

New outline color.

setThickness()

void wPlot2D::FrameEntity::setThickness

(

float

thickness

)

Sets the outline thickness of the frame.

Parameters

thickness

New outline thickness (must be > 0).

setPadding()

void wPlot2D::FrameEntity::setPadding

(

const sf::Vector2f &

padding

)

Sets the padding around the content.

Parameters

padding

Padding as (x, y).

update()

void wPlot2D::FrameEntity::update	(	const sf::FloatRect &	contentBounds,
		const sf::Vector2f &	position )

Updates the size and position of the frame based on content bounds.

Parameters

contentBounds	The bounding box of the content (width/height).
position	The position of the frame's center in pixels.

render()

void wPlot2D::FrameEntity::render

(

sf::RenderWindow &

window

)

Renders the frame to the given render window.

Parameters

window

Target render window.

---

The documentation for this class was generated from the following files:

• wFrameEntity.hpp
• wFrameEntity.cpp
