wEngine::ThicknessComponent Class Reference

ECS component that defines the thickness of a drawable object. More...

#include <wThicknessComponent.hpp>

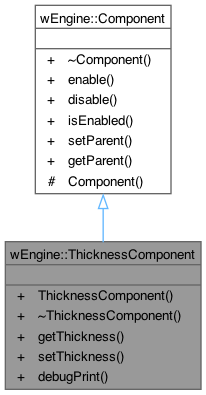

Inheritance diagram for wEngine::ThicknessComponent:

Public Member Functions
	ThicknessComponent (float thickness=2.0f)
	Constructs the component with an initial positive thickness.
virtual	~ThicknessComponent ()=default
float	getThickness () const
	Returns the current thickness.
void	setThickness (float newThickness)
	Sets a new thickness value.
void	debugPrint () const
	Outputs the current thickness value to the console for debugging.
Public Member Functions inherited from wEngine::Component
virtual	~Component ()=default
virtual void	enable ()
virtual void	disable ()
bool	isEnabled () const
	Checks whether the component is currently active.
void	setParent (Entity *parent)
	Sets the parent entity of this component.
Entity *	getParent () const
	Returns the parent entity of this component.

Additional Inherited Members
Protected Member Functions inherited from wEngine::Component
	Component ()
	Protected constructor to restrict instantiation to derived classes.

Detailed Description

ECS component that defines the thickness of a drawable object.

This component stores a positive float value representing the thickness (in pixels) of lines or shapes (e.g., axes, borders). The value must be strictly positive.

Examples:

• A thickness of 1.0f draws a thin line.
• A thickness of 4.0f produces a bold axis.

Exceptions

std::invalid_argument

if the value is zero or negative.

Usage Examples:

• A thickness of 1.0f draws a thin line.
• A thickness of 4.0f produces a bold axis.

Author

Wilfried Koch

Copyright

© 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

ThicknessComponent()

wEngine::ThicknessComponent::ThicknessComponent

(

float

thickness = 2.0f

)

Constructs the component with an initial positive thickness.

Parameters

thickness

Initial thickness value (default is 2.0f).

Exceptions

std::invalid_argument

if the value is zero or negative.

~ThicknessComponent()

virtual wEngine::ThicknessComponent::~ThicknessComponent ( )

virtualdefault

Member Function Documentation

getThickness()

float wEngine::ThicknessComponent::getThickness ( ) const

nodiscard

Returns the current thickness.

Returns

A positive float representing the line thickness (in pixels).

setThickness()

void wEngine::ThicknessComponent::setThickness

(

float

newThickness

)

Sets a new thickness value.

Parameters

newThickness

A strictly positive float.

Exceptions

std::invalid_argument

if the value is zero or negative.

debugPrint()

void wEngine::ThicknessComponent::debugPrint

(

)

const

Outputs the current thickness value to the console for debugging.

---

The documentation for this class was generated from the following files:

• wThicknessComponent.hpp
• wThicknessComponent.cpp
