wEngine::PositionComponent Class Reference

ECS component storing the position of an entity in 2D space and supports movement tracking. More...

#include <wPositionComponent.hpp>

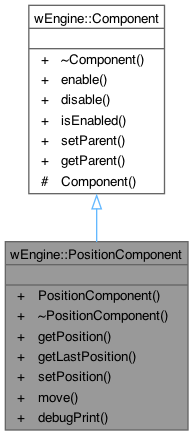

Inheritance diagram for wEngine::PositionComponent:

Public Member Functions
	PositionComponent (sf::Vector2f position=sf::Vector2f(0.0f, 0.0f))
	Constructs a PositionComponent with the given position.
virtual	~PositionComponent ()=default
sf::Vector2f	getPosition () const
	Gets the current position of the component.
sf::Vector2f	getLastPosition () const
	Returns the previous position (before the last move).
void	setPosition (sf::Vector2f newPosition)
	Sets the 2D position to a new value.
void	move (const sf::Vector2f &offset)
	Moves the position by an offset.
void	debugPrint () const
	Outputs the position (x, y) to standard output for debugging.
Public Member Functions inherited from wEngine::Component
virtual	~Component ()=default
virtual void	enable ()
virtual void	disable ()
bool	isEnabled () const
	Checks whether the component is currently active.
void	setParent (Entity *parent)
	Sets the parent entity of this component.
Entity *	getParent () const
	Returns the parent entity of this component.

Additional Inherited Members
Protected Member Functions inherited from wEngine::Component
	Component ()
	Protected constructor to restrict instantiation to derived classes.

Detailed Description

ECS component storing the position of an entity in 2D space and supports movement tracking.

This component holds a 2D vector representing the current and previous spatial position of its parent entity.

Usage Examples:

• Default position at origin:

  addComponent< wEngine::PositionComponent >( );

• Custom position:

  addComponent< wEngine::PositionComponent >( sf::Vector2f( 100.0f, 200.0f ) );

Author

Wilfried Koch

Copyright

© 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

PositionComponent()

wEngine::PositionComponent::PositionComponent

(

sf::Vector2f

position = sf::Vector2f( 0.0f, 0.0f )

)

Constructs a PositionComponent with the given position.

Parameters

position

Initial position (default is ( 0.0f, 0.0f )).

~PositionComponent()

virtual wEngine::PositionComponent::~PositionComponent ( )

virtualdefault

Member Function Documentation

getPosition()

sf::Vector2f wEngine::PositionComponent::getPosition ( ) const

nodiscard

Gets the current position of the component.

Returns

The current 2D position vector.

getLastPosition()

sf::Vector2f wEngine::PositionComponent::getLastPosition ( ) const

nodiscard

Returns the previous position (before the last move).

Returns

The last recorded position.

setPosition()

void wEngine::PositionComponent::setPosition

(

sf::Vector2f

newPosition

)

Sets the 2D position to a new value.

Parameters

newPosition

The new position.

move()

void wEngine::PositionComponent::move

(

const sf::Vector2f &

offset

)

Moves the position by an offset.

Parameters

offset

The offset to add to the current position.

Stores the current position as the last position before applying the offset.

debugPrint()

void wEngine::PositionComponent::debugPrint

(

)

const

Outputs the position (x, y) to standard output for debugging.

---

The documentation for this class was generated from the following files:

• wPositionComponent.hpp
• wPositionComponent.cpp
