wEngine::NotchIntervalComponent Class Reference

ECS component that defines the interval between notches on an axis. More...

#include <wNotchIntervalComponent.hpp>

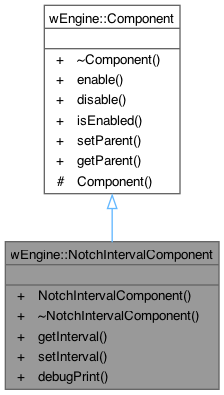

Inheritance diagram for wEngine::NotchIntervalComponent:

Public Member Functions
	NotchIntervalComponent (float interval=1.0f)
	Constructs a NotchIntervalComponent with a given interval.
virtual	~NotchIntervalComponent ()=default
float	getInterval () const
	Returns the current spacing between notches.
void	setInterval (float newInterval)
	Sets a new interval between notches.
void	debugPrint () const
	Outputs the current interval to standard output for debugging.
Public Member Functions inherited from wEngine::Component
virtual	~Component ()=default
virtual void	enable ()
virtual void	disable ()
bool	isEnabled () const
	Checks whether the component is currently active.
void	setParent (Entity *parent)
	Sets the parent entity of this component.
Entity *	getParent () const
	Returns the parent entity of this component.

Additional Inherited Members
Protected Member Functions inherited from wEngine::Component
	Component ()
	Protected constructor to restrict instantiation to derived classes.

Detailed Description

ECS component that defines the interval between notches on an axis.

This component stores the spacing (in logical units) between visual ticks or markers on an axis, such as those used in coordinate grids or charts.

It enables the placement of regular visual markers and may be queried by rendering systems.

Author

Wilfried Koch

Copyright

© 2025 Wilfried Koch. All rights reserved.

Constructor & Destructor Documentation

NotchIntervalComponent()

wEngine::NotchIntervalComponent::NotchIntervalComponent

(

float

interval = 1.0f

)

Constructs a NotchIntervalComponent with a given interval.

Parameters

interval

Distance between notches in logical units (must be > 0). Default is 1.0f.

Exceptions

std::invalid_argument

if interval is not strictly positive.

~NotchIntervalComponent()

virtual wEngine::NotchIntervalComponent::~NotchIntervalComponent ( )

virtualdefault

Member Function Documentation

getInterval()

float wEngine::NotchIntervalComponent::getInterval ( ) const

nodiscard

Returns the current spacing between notches.

Returns

The interval, expressed in logical units.

setInterval()

void wEngine::NotchIntervalComponent::setInterval

(

float

newInterval

)

Sets a new interval between notches.

Parameters

newInterval

New spacing value (must be > 0).

Exceptions

std::invalid_argument

if newInterval is not strictly positive.

debugPrint()

void wEngine::NotchIntervalComponent::debugPrint

(

)

const

Outputs the current interval to standard output for debugging.

---

The documentation for this class was generated from the following files:

• wNotchIntervalComponent.hpp
• wNotchIntervalComponent.cpp
